Basic Info

Model No.: NFM45-M16

Product Type: Rare Earth Metal

Composition: Neodymium

Application Temperature: Up To 80°C

Net Weight: 170g

Dimensions (Diameter*Height Mm): D54*10mm

Magnetic Force: 70KG

Threaded Size: M16

Additional Info

Packaging: Carton

Productivity: 10000SETS/MONTH

Brand: SHINE

Transportation: Ocean,Land,Air

Place of Origin: Ningbo

Certificate: ISO9001, MSDS, Rosh

HS Code: 8505909090

Port: Ningbo Port,Shanghai Port,Tianjin Port

Product Description

Introduction

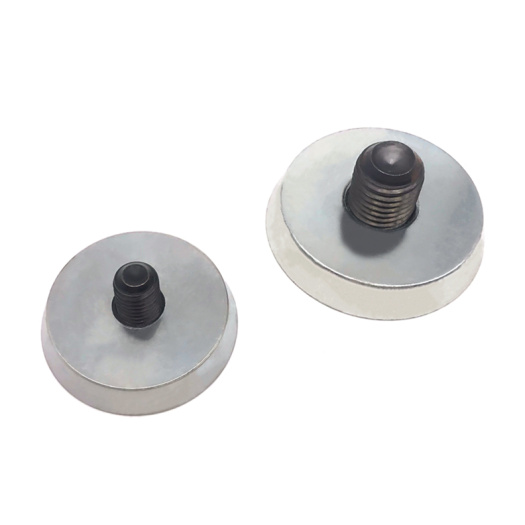

Steel round base Insert magnets with M16 thread rods have revolutionized the precast industry.

The insert magnet are used in the precast concrete production structures to form free spaces in the work-pieces to fix the concrete inserts. Insert magnets are used in magnetic shuttering systems. This equipment type has considerably simplified some production task for the concrete structures producers. It easily gets fixed in the magnet formwork system or on the steel table due to its magnetic properties.

Insert magntes are designed and developed for various embedded parts of PC elements, like lifting and fixing socket, anchor channel, recess former etc. When producing precast concrete elements, we need to set aside all kinds of switch hole and pile hole, we also need to embed various connection or lifting socket. Also the insert magnets can be repeatedly used for longtime, save cost, simple operation, and improve efficiency.

SHINE Insert Magnet process offers long term reliability and cost effective solutions for the precast industry. Our products are durable and they last for years under all conditions.

Benifit

- Extremely high magnetic force

-  The associated threaded rods are available in thread sizes from M10 to M36

- Conical construction for easy release from the hardened concrete

- High flexibility with exchangeable threaded rods

- Their ability to be reused means that they are environmentally friendly and cost effective

Application

- Insert magnets for pallet circulation systems, steel tables and tilting tables.

- Insert for walls, beams, piles, floor slabs, and other concrete products..
