|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Min. Order:||10 Set/Sets|
|Delivery Time:||15 Days|
Model No.: NFM45-M14
Product Type: Rare Earth Metal
Application Temperature: Up To 80°C
Net Weight: 160g
Dimensions (Diameter*Height Mm): D54*10mm
Magnetic Force: 70KG
Surface Coating: Zinc
Place of Origin: Ningbo
Certificate: ISO9001, MSDS, Rosh
HS Code: 8505909090
Port: Ningbo Port,Shanghai Port,Tianjin Port

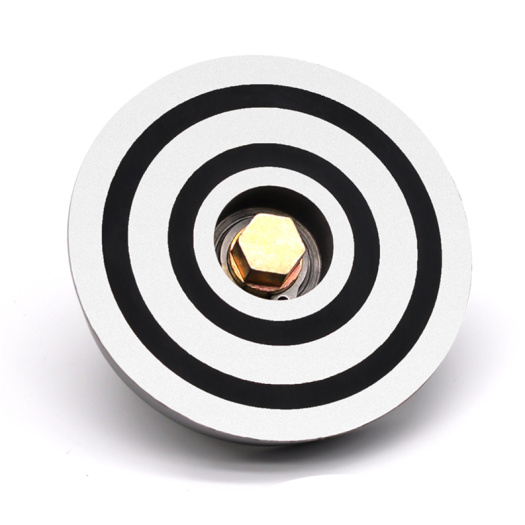

SHINE Neodymium Threaded Bushing Magnets With M14 Thread Rods have revolutionized the precast industry.
The Threaded Bushing Magnets are used in the precast concrete production structures to form free spaces in the work-pieces to fix the concrete inserts. Insert magnets are used in magnetic shuttering systems. This equipment type has considerably simplified some production task for the concrete structures producers. It easily gets fixed in the magnet formwork system or on the steel table due to its magnetic properties.
Neodymium Threaded Bushing Magnets are designed and developed for various embedded parts of PC elements, like lifting and fixing socket, anchor channel, recess former etc. When producing precast concrete elements, we need to set aside all kinds of switch hole and pile hole, we also need to embed various connection or lifting socket. Also the insert magnets can be repeatedly used for longtime, save cost, simple operation, and improve efficiency.
SHINE Neodymium Threaded Bushing Magnets process offers long term reliability and cost effective solutions for the precast industry. Our products are durable and they last for years under all conditions.
- Extremely high magnetic force
- The associated threaded rods are available in thread sizes from M10 to M36
- Conical construction for easy release from the hardened concrete
- High flexibility with exchangeable threaded rods
- Their ability to be reused means that they are environmentally friendly and cost effective
- Neodymium Threaded Bushing Magnets for pallet circulation systems, steel tables and tilting tables.
- Neodymium Threaded Bushing Magnets for walls, beams, piles, floor slabs, and other concrete products..
