Basic Info

Model No.: RF68

Composition: Neodymium

Product Type: Rare Earth Magnet

Application Temperature: Up To 80°C

Surface Coating: Zinc

Diameter: 68cm

Anchor Size: 1.3T

G.W: 0.5KG

Pull Force: 80KG

Additional Info

Packaging: Carton

Productivity: 10000SETS/MONTH

Brand: SHINE

Transportation: Ocean,Land,Air

Place of Origin: Ningbo

Certificate: ISO9001, MSDS, Rosh

HS Code: 8505909090

Port: Ningbo Port,Shanghai Port,Tianjin Port

Product Description

Introduction

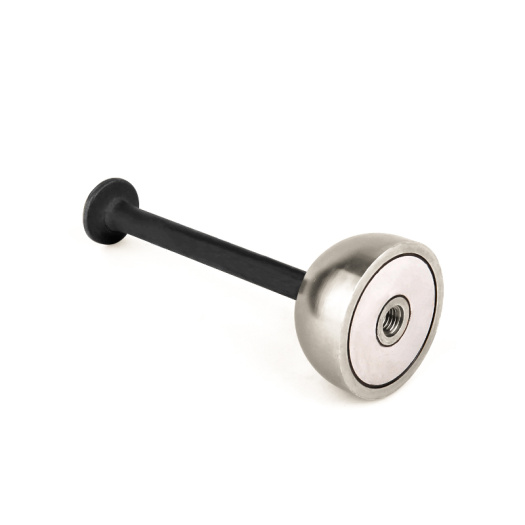

The Precast Concrete Recess Former Magnet 1.3T is used for holding ball-headed anchors. Depending on the size of the ball-headed anchor, we offer the magnets to fit with the optimum magnetic force in our range of products.

In order to attach the ball-headed anchor to the magnet, the appropriate rubber holding band is supplied in each case. The steel body is turned from high quality solid material and forms a homogeneous unit with the high performance core of the magnet. The attachment surface is completely sealed and therefore protects the core of the magnet against corrosion and damage. This increases the working life of the magnetic force considerably. The integrated internal thread allows the magnet to be smoothly released from the steel table.

Benifit

- Combined recess former with magnet

- Internal thread for releasing the magnet

- Solid and sturdy design due to steel base body, therefore long service life

- Environmentally friendly and cost-effective through reusability

Application

- Recess Former Magnet for pallet circulation systems, steel tables and tilting tables.

- Recess Former Magnet for walls, beams, piles, floor slabs, and other concrete products..
